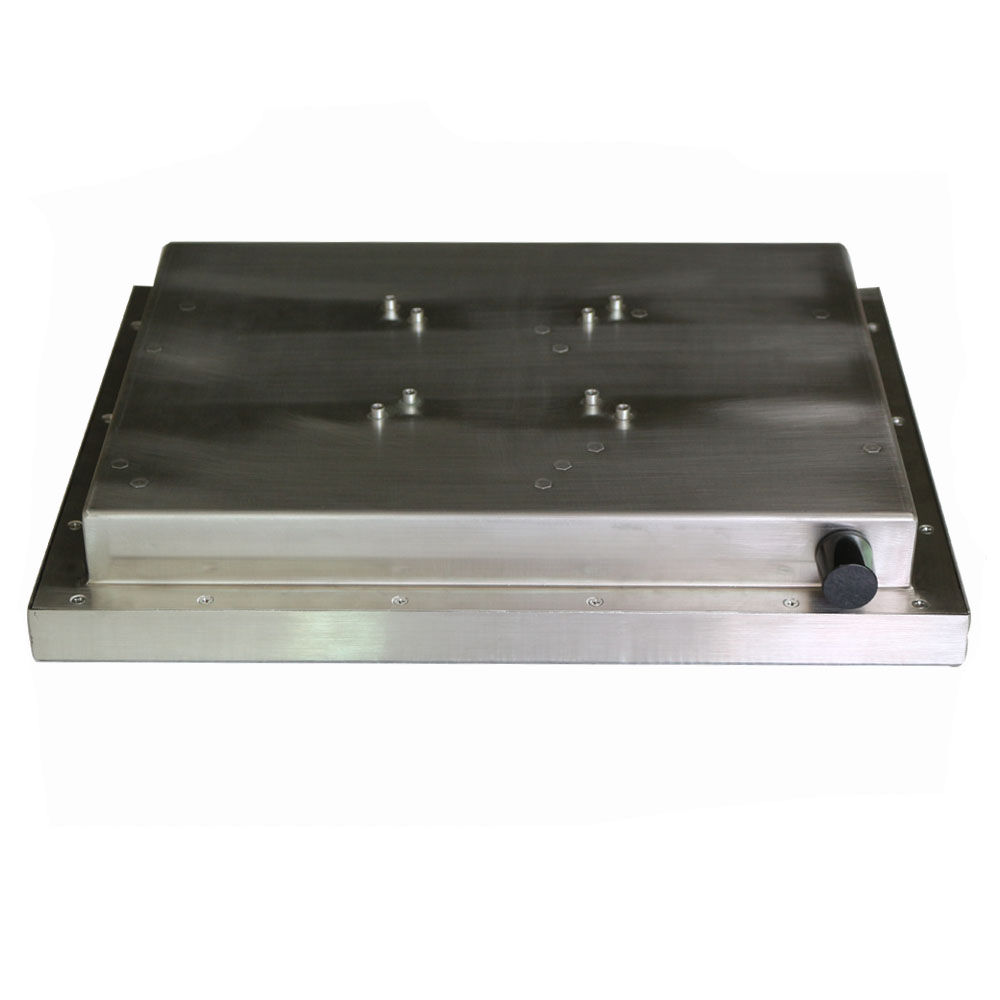

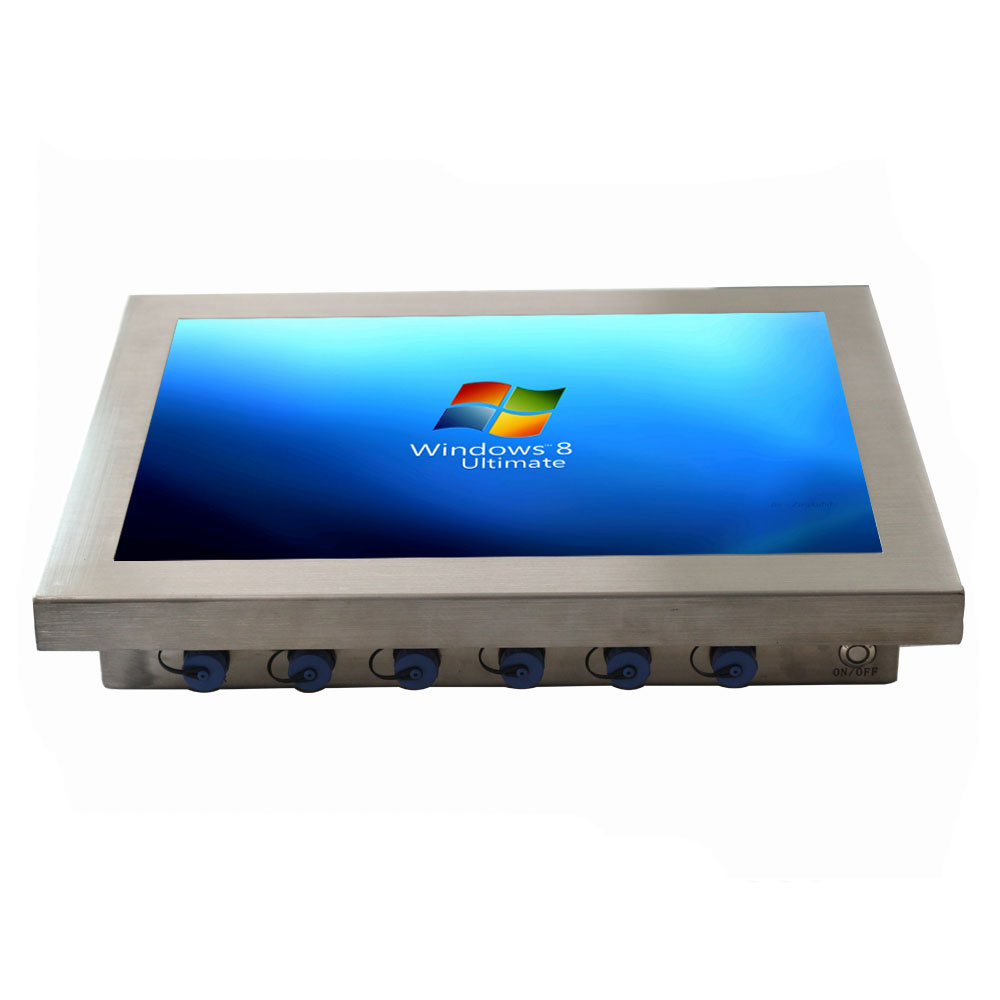

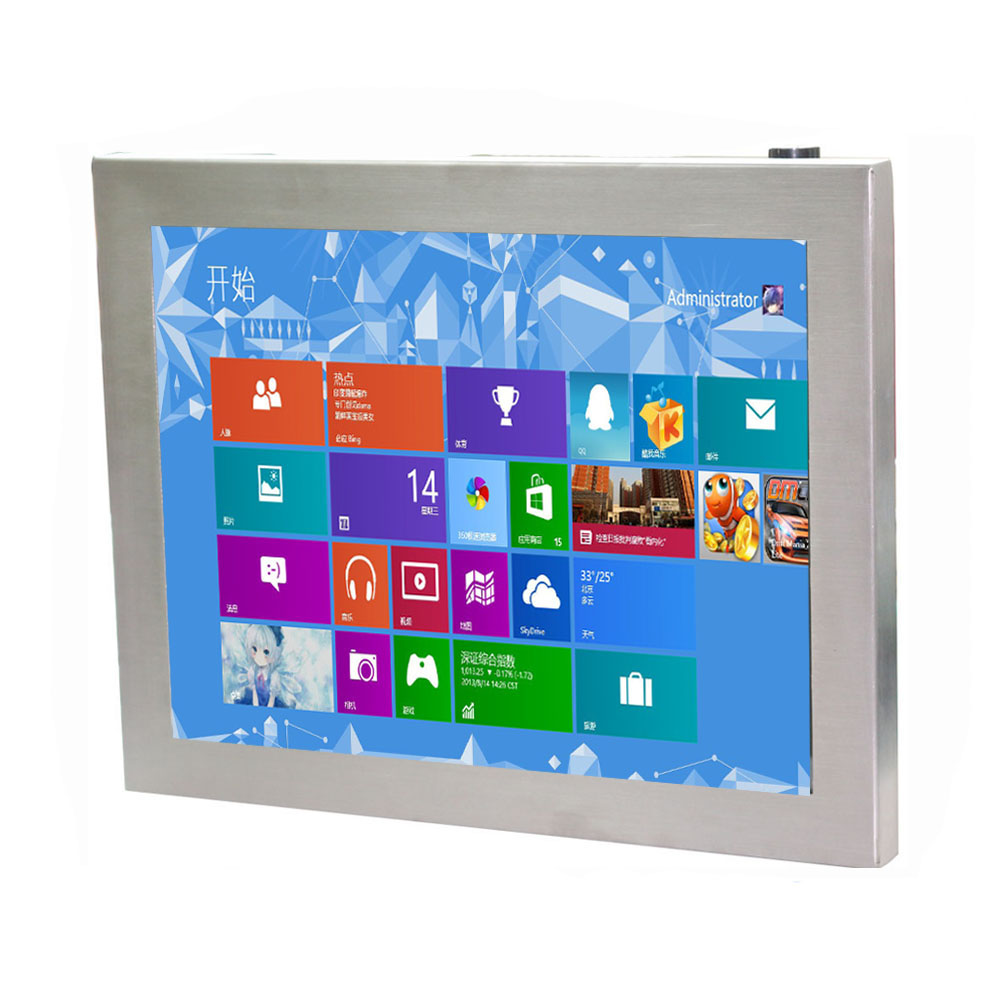

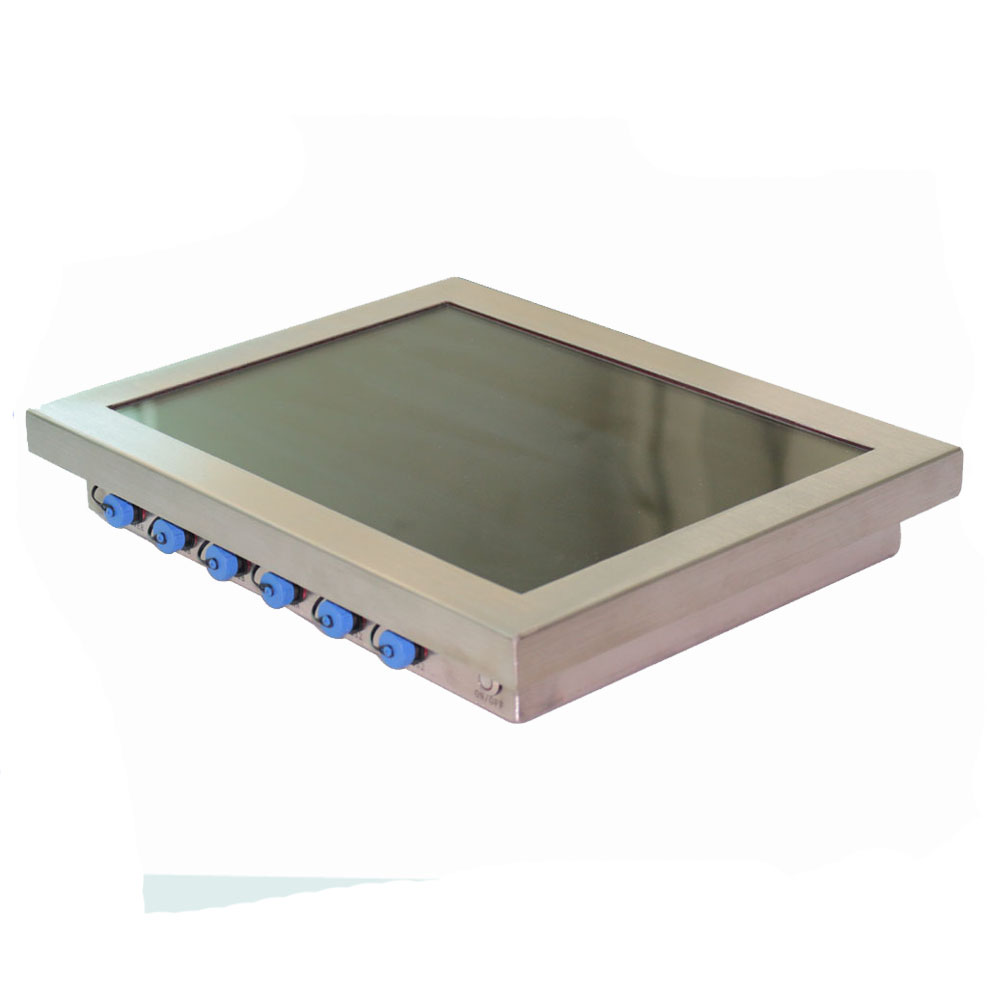

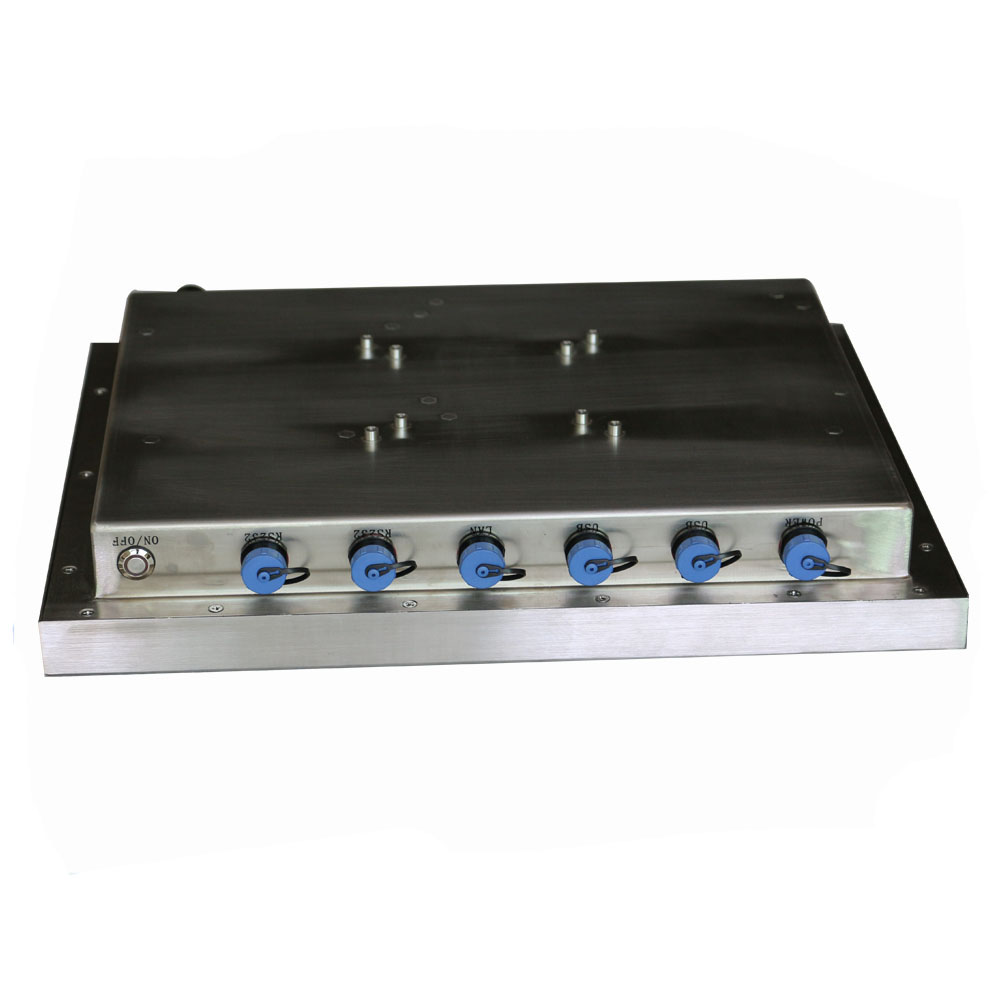

Waterproof IP65 12.1 Inch Rugged Computer with Intel N2800 Dual Core 2G Ram 32G Rom USB RJ45
Feature
1.Sturdy and durable metal sheel
2.Sensistive and fast response touch function
3.High performance -Industrial fanless board,7x24hours of continuous work
4.Customized design sunlight readable and waterproof function
Linux/Ubuntu 14.04 LTS/Win 7/8/10
Default with Win 7 OS Testing Version is preloaded.
Computer Configurations
CPU
Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory
2GB DDR3(Max. 8GB)
Storage
32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature
-20~60° C (-4~140° F)
LCD Panel Charateristics
Screen Size
12.1'' LCD/LED Panel
Touchscreen Type
Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion
1024(H)*(RGB)*768(V)
Aspect Ratio
4:3
Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
500:1
I/O Interface
USB
3xUSB2.0,1xUSB3.0
VGA
1xVGA
Serial Port(RS232)
1-2xRS232
LAN(RJ45)
1-2xRJ45

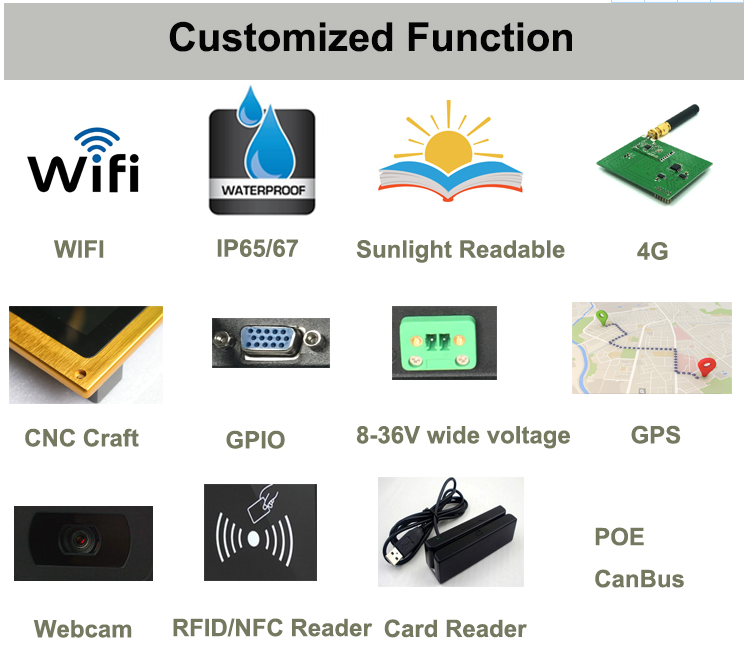

Other Function(Optional)
WIFI
3G/4G Module
GPIO Connector
8-36V wide range voltage
CanBus
Webcam
Brightness Control in Manual and Auto
RF/NFC Reader
Other Information
Frame Material
Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft
Color
Default balck,also can choose white,silvery or other colour
VASA Mounting
75*75 mm or 100*100 mm
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Weight
6KG
