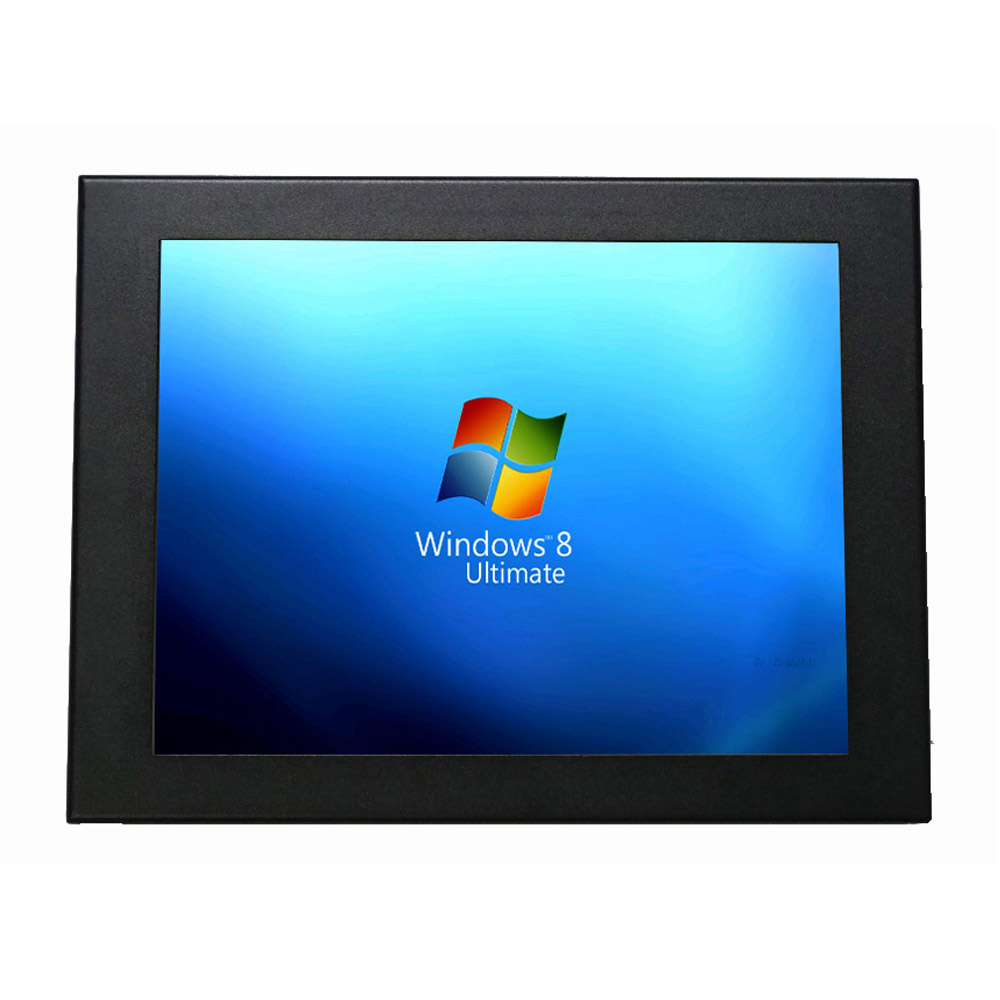

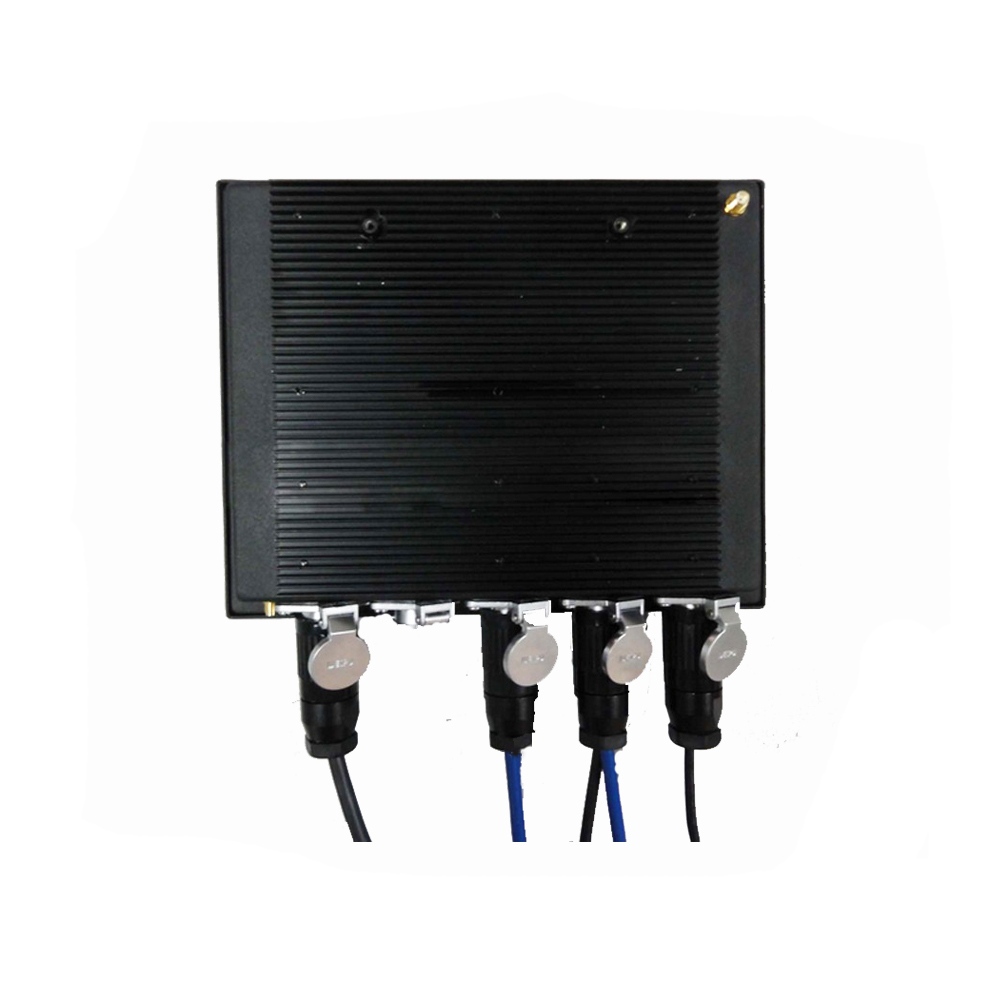

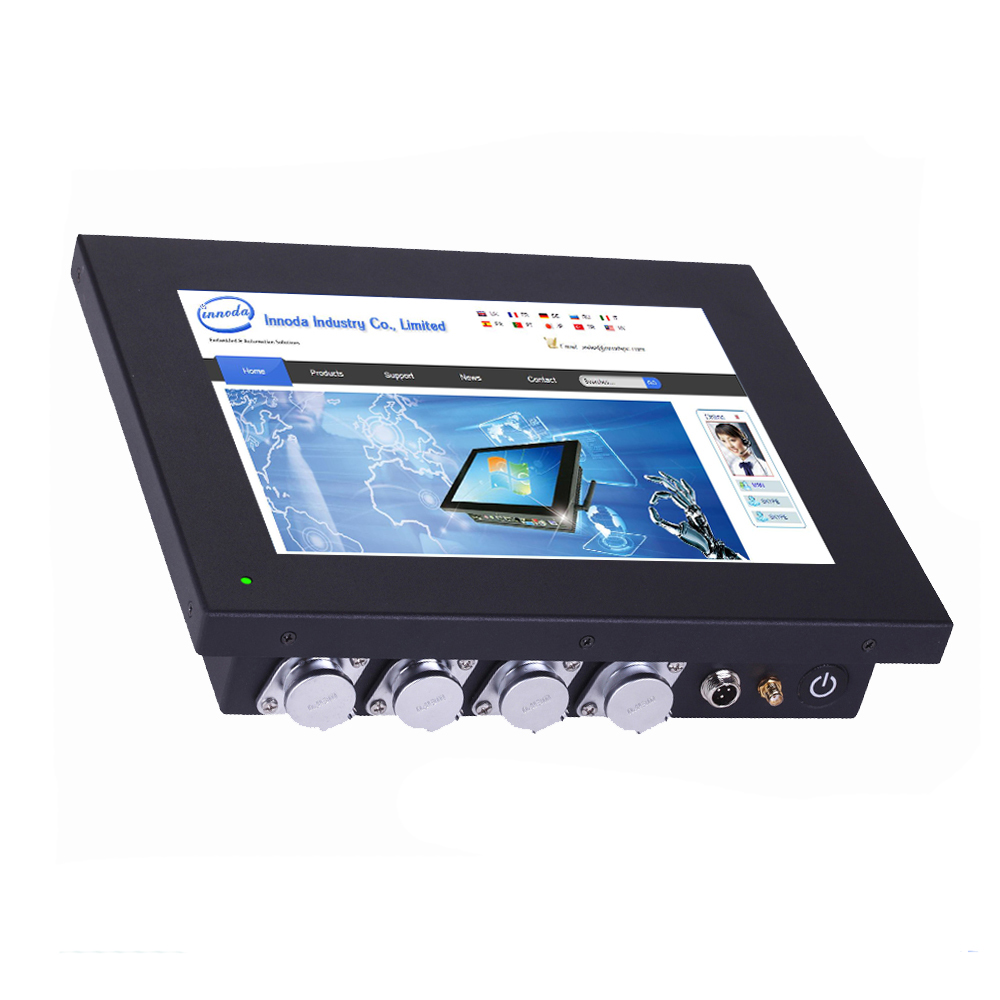

10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc
Feature
1.Sturdy and durable metal sheel

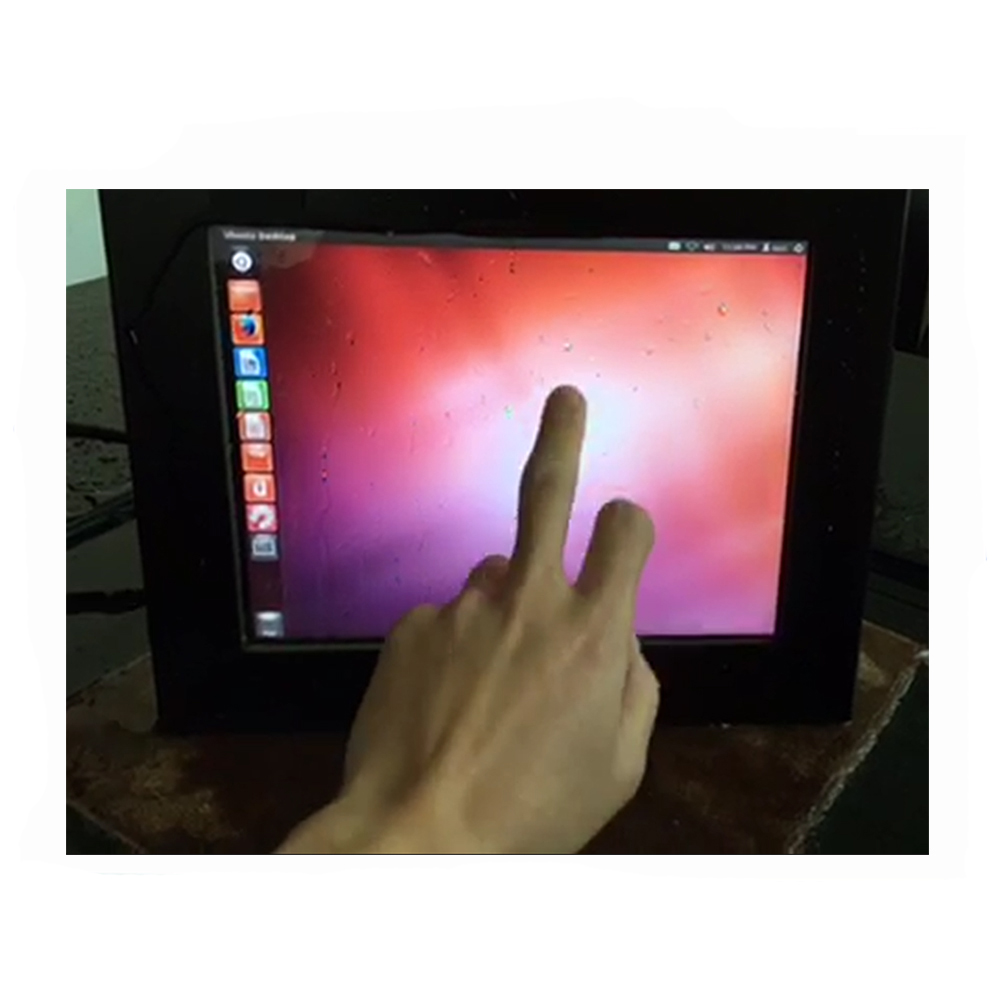

2.Sensistive and fast response touch function
3.High performance -Industrial fanless board,7x24hours of continuous work
4.Customized design sunlight readable and waterproof function
Linux/Ubuntu 14.04 LTS/Win 7/8/10
Default with Windows 7 OS Testing Version is preloaded.
Computer Configurations
CPU
Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory
2GB DDR3(Max. 8GB)
Storage
32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature
-20~60° C (-4~140° F)
| LCD Panel Charateristics | |
| Screen Size | 10.1'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*600(V) |
| Aspect Ratio | 16:9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |
| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | TBD |
| Packing Dimension(LxWxH) | TBD |
| Weight | 6KG |
