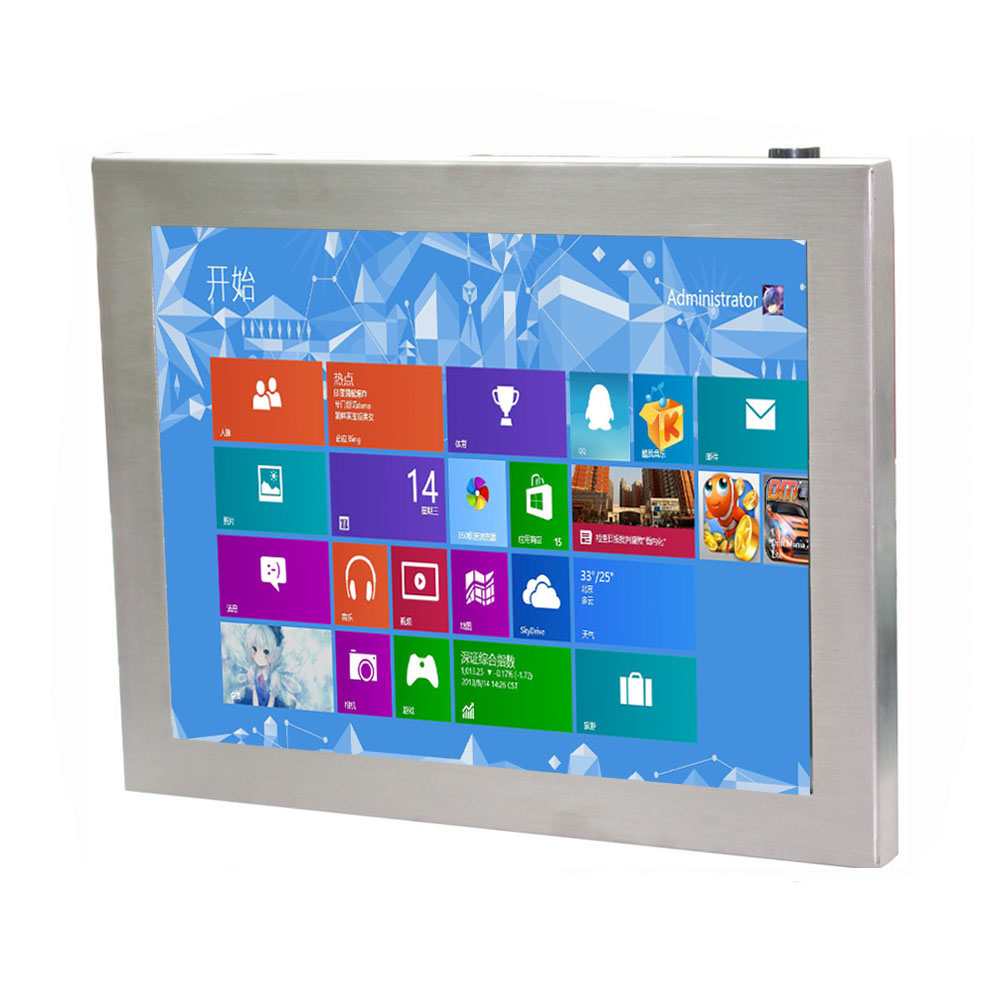

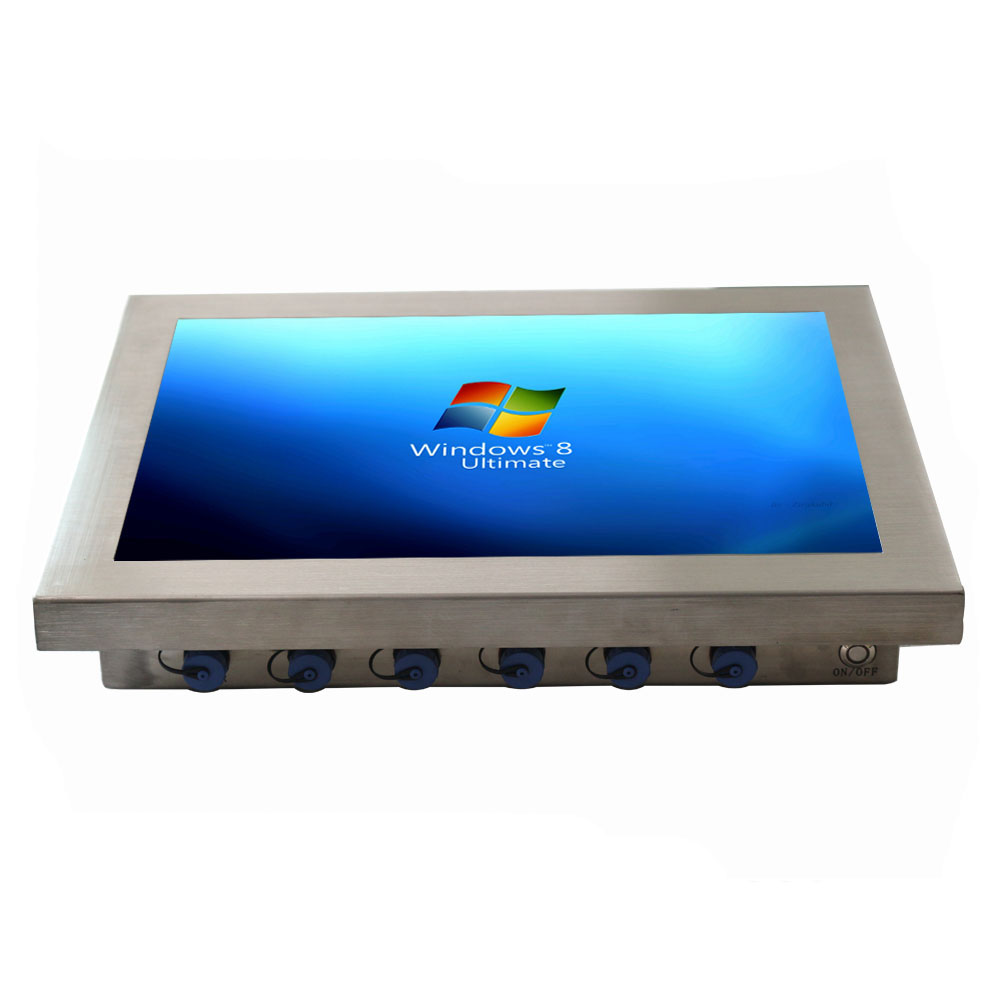

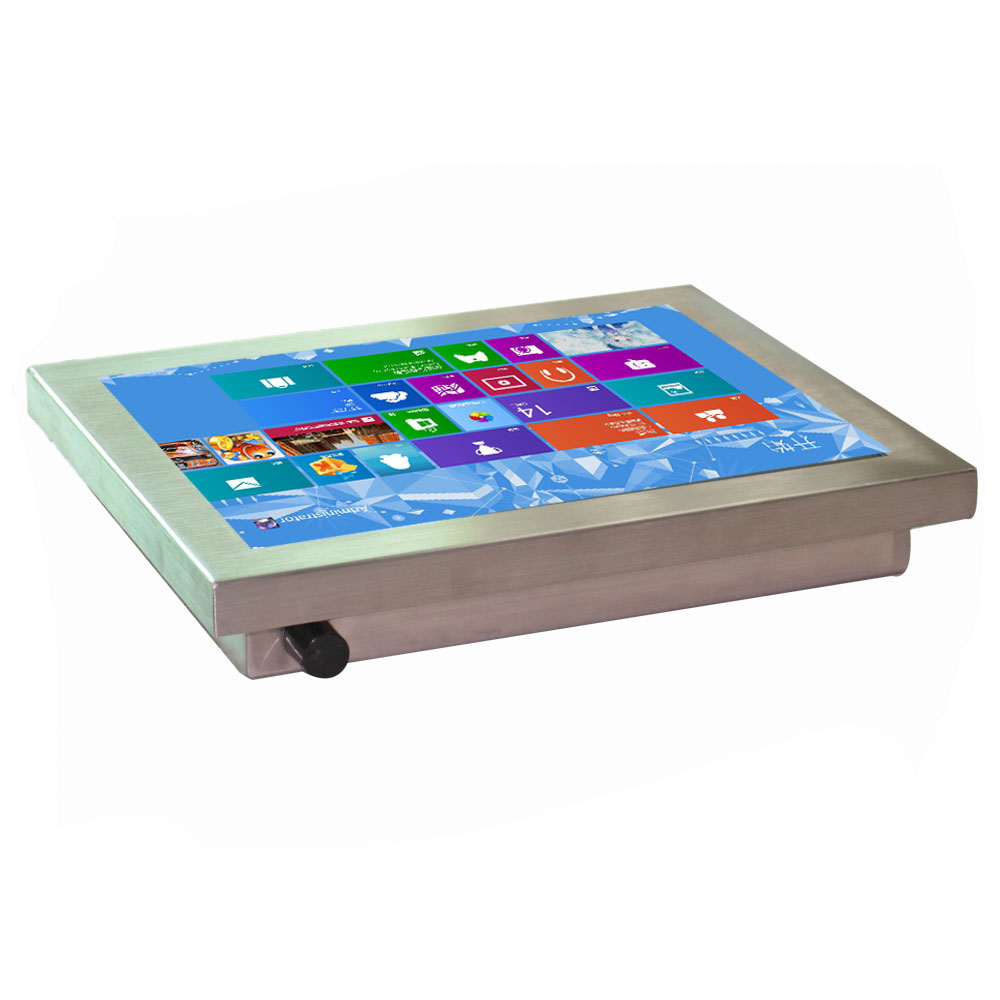

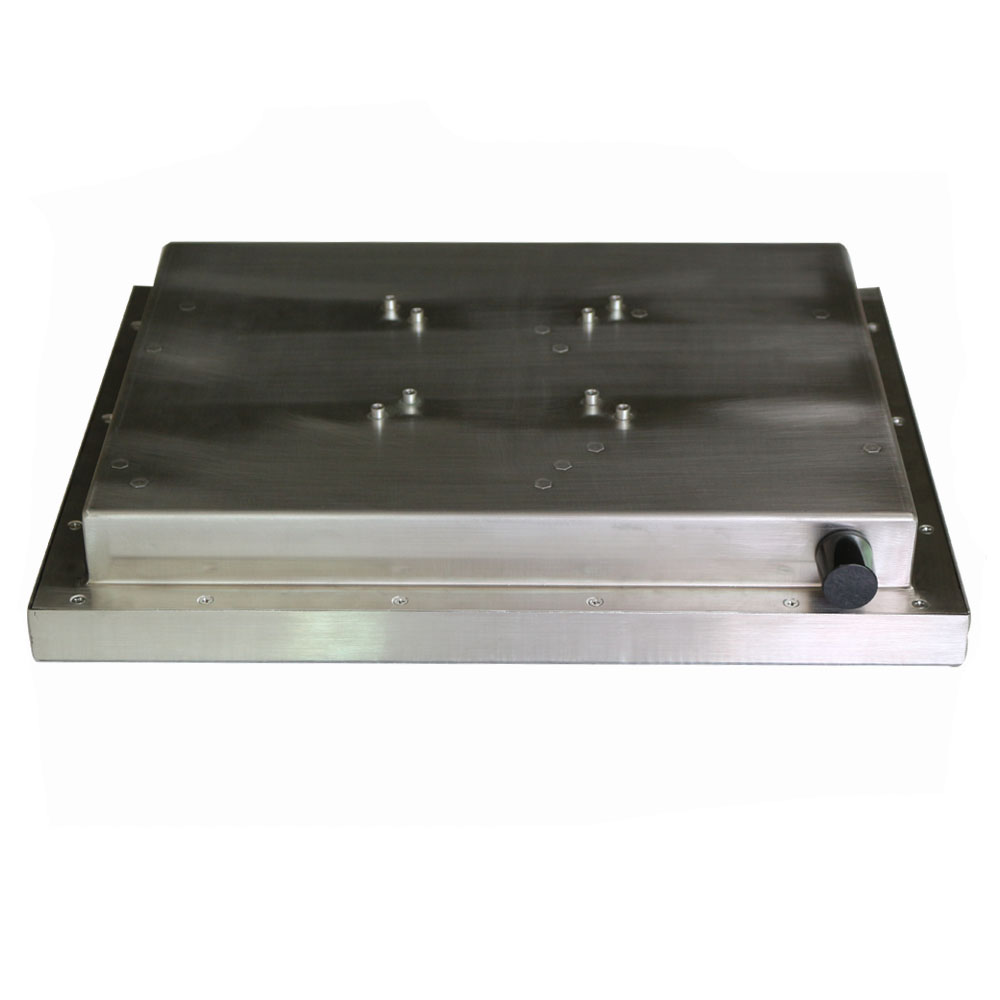

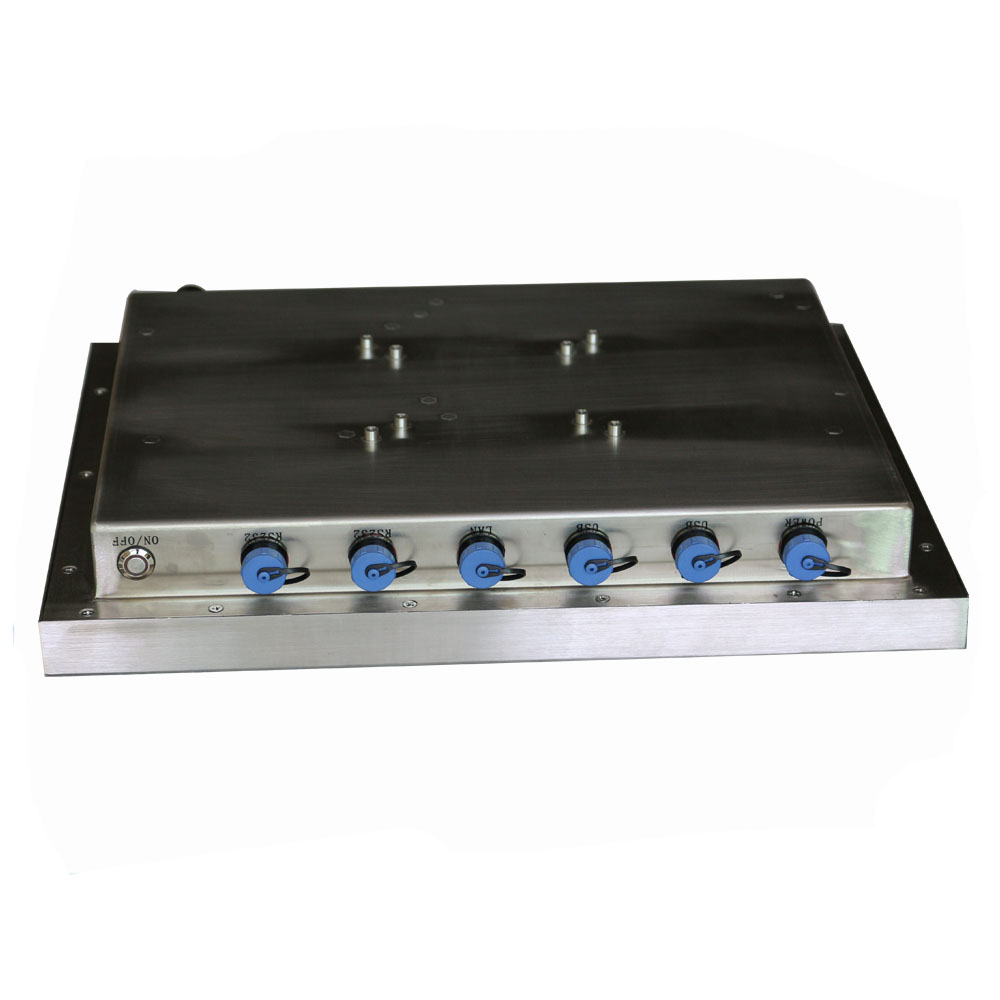

15-inch Fanless 1000nits Sunlight Readable IP65 Waterproof Android Industrial Panel Pc
Features
1.Sturdy and durable aluminum sheel
2.Sensistive and fast response touch function
3.High performance -Industrial fanless board,7x24hours of continuous work
4.Customized design sunlight readable and waterproof function
Linux/Ubuntu 14.04 LTS/Windows 7/8/10
Default with Windows 7 OS Testing Version is preloaded.
Computer Configurations
CPU
Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory
2GB DDR3(Max. 8GB)
Storage
32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature
-20~60° C (-4~140° F)
LCD Panel Charateristics
Screen Size
15'' LCD/LED Panel
Touchscreen Type
Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion
1024(H)*(RGB)*768(V)
Aspect Ratio
4:3
Brightness
250cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
500:1
I/O Interface
USB
3xUSB2.0,1xUSB3.0
VGA
----
Serial Port(RS232)
1-2xRS232
HDMI
----
LAN(RJ45)
1-2xRJ45
Other Function(Optional)
WIFI
3G/4G Module
GPIO Connector
8-36V wide range voltage
Bluetooth
Webcam
Brightness Control in Manual and Auto
RF/NFC Reader
Other Information
Frame Material
Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft
Color
Default balck,also can choose white,silvery or other colour
VASA Mounting
75*75 mm or 100*100 mm
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Weight
6KG
