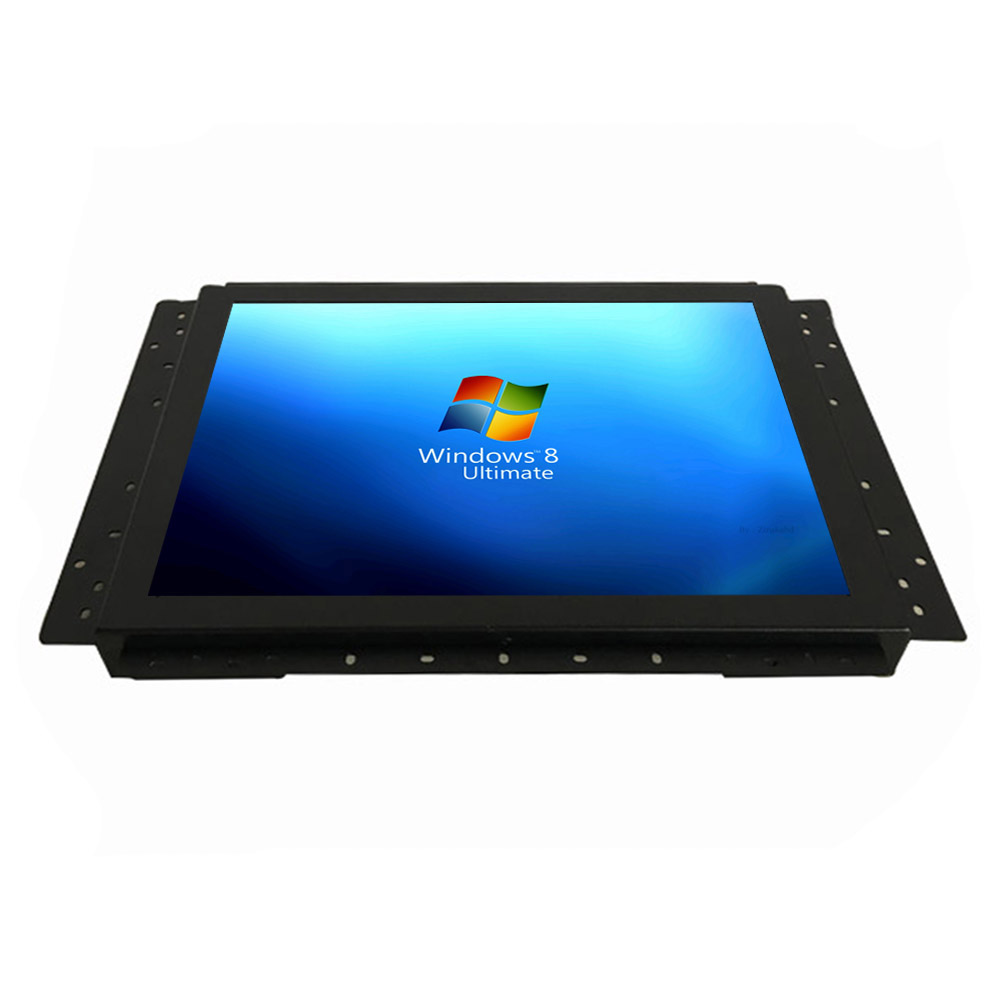

Open Frame 1000nits High Brightness 12.1'' LCD Monitor With IR Touch
Features
1.12.1'' lcd touch open frame moitor
2.Sensistive and fast response IR touch screen
3.1000nits sunlight readable brightness
3.Metal enclosure with Open Frame desgin
4.Embedded mount
Product Description
LCD Panel Characteristics
Screen Size
12.1 inch LCD Panel
Resolution
1024(H)*(RGB)*768(V)
Aspect Ratio
4:3
Brightness
1000cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
500:1
Touchscreen Characteristics (Optional)
Touchscreen Type
4-Wire Resistive
5-Wire Resistive
Projected Capacitive
Saw Touch
IR Touch
Surface Hardness
3H
4H
7H
7H
7H
Working Life
10 millions times
10 millions times
10 millions times
10 millions times
10 millions times
Transparency
82%(±3%)
88%(±3%)
95%(±3%)
95%(±3%)
95%(±3%)
I/O Interface (Optional)
VGA
1 x VGA
USB
1 x USB for touch use
DVI
-----
Power Supply
Voltage
Single 12 V DC power input
Power Comsumption
< 20W
Operating Environment (for reference, if you have special requirements on the temperature, pls inquiry our sales)
Operating Temperature
0~60° C (0~140° F)
Humidity
5~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Enclosure
Material
Metal Shell/Aluminum Bezel / Stainless Steel
Color
Black/Silver/White
VESA Mounting
75*75mm 100*100mm

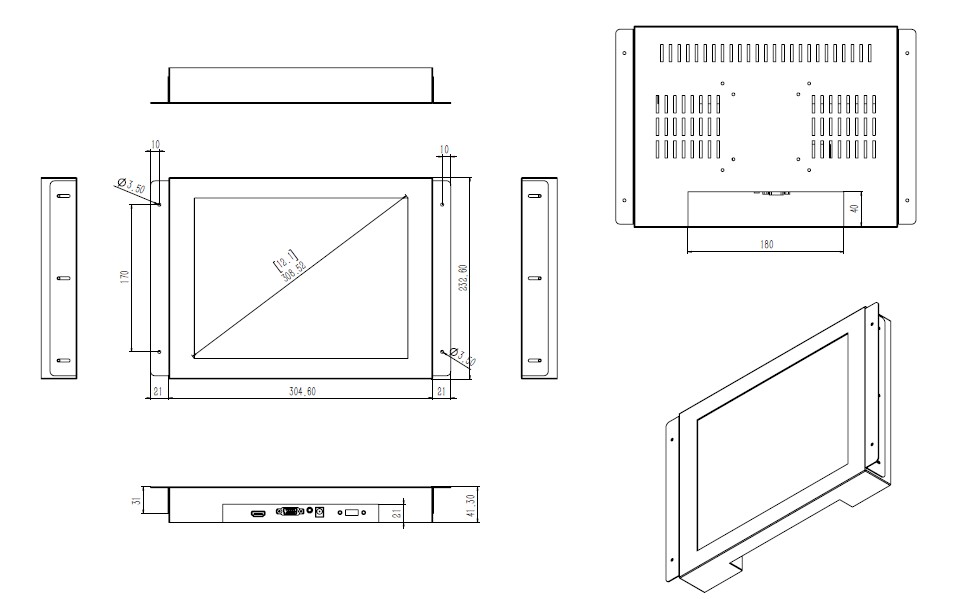

Product Dimensions
Dimensions (L x W x H)
304.6x232.5x41.3mm
Net Weight
2.9kg
Packing Details
Carton Size (L x W x H)
420x360x19mm
Gross Weight
4kg
Accessories
1x2.6A Power Adapter with cable
