Features

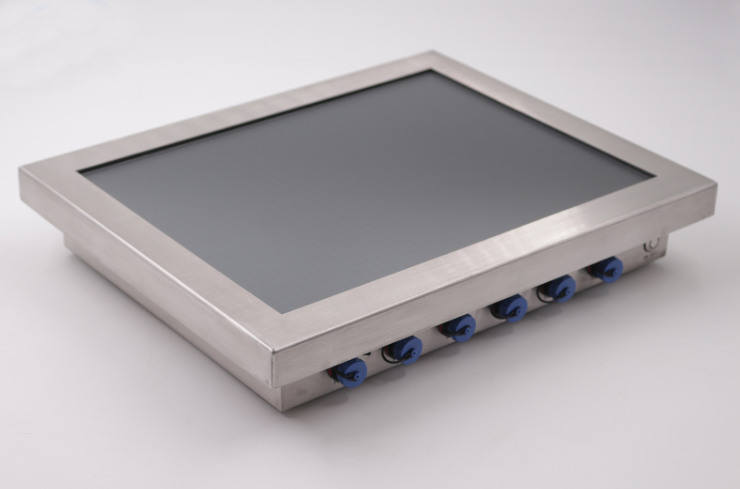

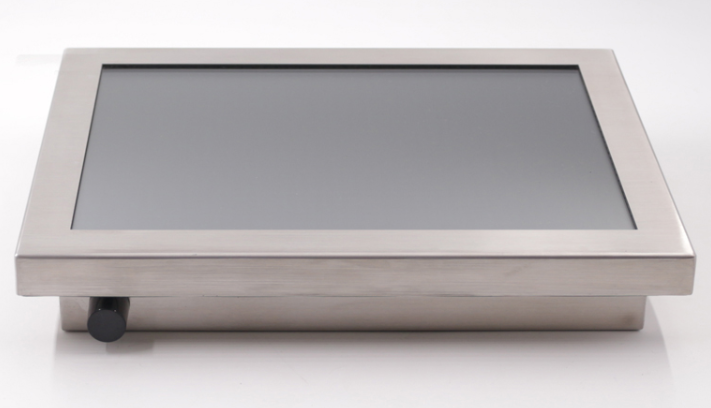

1.Sturdy and durable aluminum case with rubber sealing gaskets
2.Sensistive and fast response PCAP touch screen

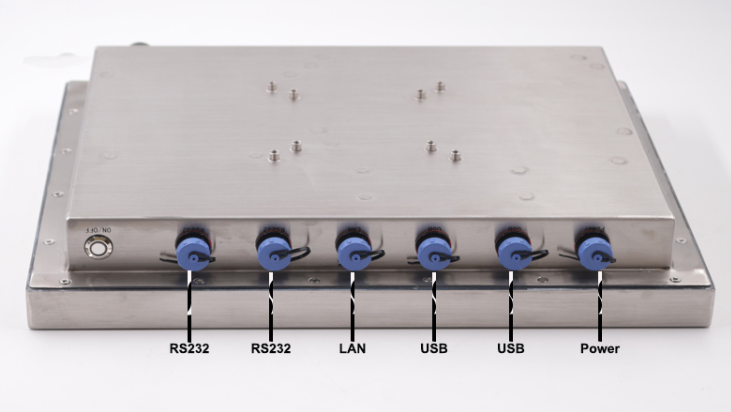

3.External IP-67 sealed AC power adapter with UL listing. Includes sealed cable set for LAN, USB, RS232, and power connections.
4.High performance -Industrial fanless board,7x24hours of continuous work
5.Waterproof WIFI ,1000nits high brightness optional
Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10
Default with Windows 7 OS Testing Version is preloaded.
Computer Configurations
CPU
Intel Celeron® Processor J1900 Dual Core 2.0GHz
Memory
2GB to Max. 8GB, DDR3
Storage
320GB to 1TB, 32GB to 128GB SSD
Operation System
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature
-20~60° C (-4~140° F)
| LCD Panel Charateristics | |
| Screen Size | 21.5'' LCD/LED Panel |
| Touchscreen Type(optional) | 4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch |
| Resoltuion | 1920(H)*(RGB)*1080(V) |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 1000:1 |
| I/O Interface | |
| USB | 4xUSB2.0 |
| VGA | ------ |
| Serial Port(RS232) | 1xRS232 |
| HDMI | ------- |
| LAN(RJ45) | 1xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G Module |
| GPIO Connector | Phoenix Connector 8-36V wide range power supply |
| Bluetooth | Webcam |
| Brightness Control in Manual and Auto | 2D Barcode Scanner |
| IP67 Waterproof Protecetion | |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | 39x32x4cm |
| Packing Dimension(LxWxH) | 49x42x17cm |
| Weight | 5.5KG |
