Production Parameter
|
Computer Configurations
|
|||
|
CPU
|
Intel Core I5-4200U/1.6GHz
|
||
|
Memory
|
2GB to Max. 8GB, DDR3
|
||
|
Built-in Storage
|
320GB to 1TB, 32GB to 128GB SSD |
||
|
Operation System
|
Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10 Default with Windows 7 OS Testing Version is preloaded. |
||
|
Cooling
|
Android 6.0.1
|
||
|
Power Supply
|
100V-240V,12V 7A AC Input,max 24W power consumption |
||
|
Operating Temperature
|
-20~70° C
|
||
|
LCD Panel Charateristics
|
|||
|
Screen Size
|
19'' industrial grade Panel
|
||
|
Touchscreen Type(optional)
|
4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch
|
||
|
Resoltuion
|
1280(H)*(RGB)*1024(V)
|
||
|
Aspect Ratio
|
4:3 |
||
|
High Brightness
|
350cd/m2
|
||
|
View Angle
|
80x80(H),80x80(V)
|
||
|
Contrast Ratio
|
700:1
|
||
|

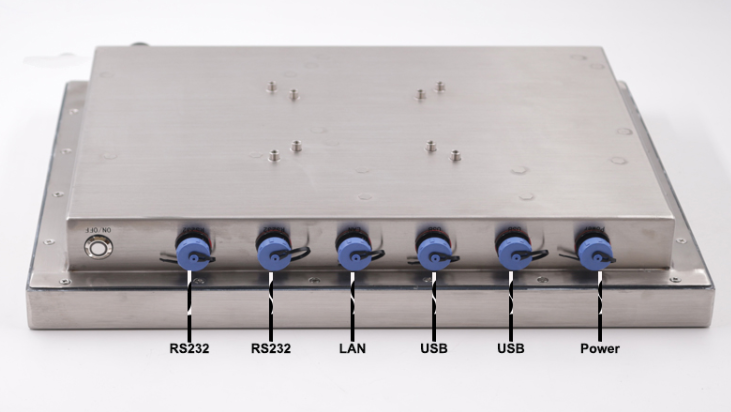

I/O Interface |
|||
|
1 or 4 x USB2.0(up to 6)
|
1xLAN(RJ45)
|
||
|
1 or 4 x COM
|
|
||
|
Function
|
|||
|
WIFI(optional)
|
Waterproof IP67(optional)
|
||
|
1000nits sunlight readable(optional)
|
8-36V wide range voltage(optional)
|
||
|
Other Information
|
|||
|
Frame Material
|
Aluminum Alloy/Stainless Steel
|
||
|
Sheel Process Technic
|
Powder coated/Wire Drawing/CNC craft
|
||
|
VASA Mounting
|
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount
|
||
|
Color
|
Default balck,also can choose white,silvery or other colour
|
||
|
Product Dimension(LxWxH)
|
360x288x57mm
|
||
|
Packing Dimension(LxWxH)
|
460x388x158mm
|
||
