What is the Infrared Thermometer?
What is the features of the infrared Thermometer?
1.Far-field non-contact temperature measurement to avoid cross infection
2.Support 0.4 ~ 0.6m non-contact long-distance temperature measurement, 7 * 24 hours uninterrupted work;
3. 0.3 ℃ error: error control ± 0.3 ℃
4.Automatic alarm when suspected fever
5.Single machine supports multi-channel configuration management to improve detection efficiency
6.Supports mask detection optimization: Face recognition with high accuracy of face recognition, people who are not wearing a mask will automatically be alerted
7.Infrared temperature measurement + visible light capture, efficient and intuitive
8.Real-time recognition
9.Non-sensing temperature
10.Over-temperature warning
11.Health Archive
12.Statistical report
|
Model
|

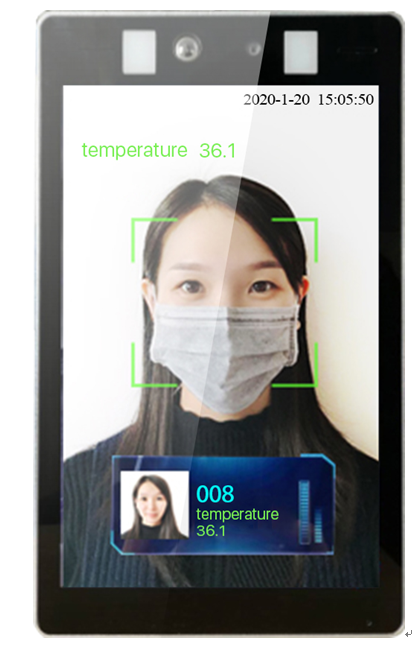

2MP Face recognize+temperature detection 8inch smart camera
|
||
|
TA8201R-8T
|
|||
|
Display
|
8inch LCD
|
||
|
Thermal
|
Sensor
|
Thermal imaging infrared temperature sensor
|
|
|
Temperature measurement
|
Range：35~42℃，
Precision： ±0.3℃
|
||
|
Detect distance
|
0.4m~0.7m
|
||
|
Visible parameters
|
Lens
|
focal length 1.8mm， Field of View：118°
|
|
|
Mini illum
|
0.01Lux@F1.2 color mode
|
||
|
Dynamic Range
|
≥100dB
|
||
|
S/N Ratio
|
≥43dB（AGC OFF）
|
||
|
Exposure mode
|
Program mode
(customizable shutter interval), shutter mode（1/5 - 1/20,000s）support for slow shutter
|
||
|
White balance
|
Auto, indoor, outdoor,
sodium lamp mode, manual
|
||
|
Digital noise
reduction
|
Support DNR,3DNR
|
||
|
Day and night mode
|
Fixed color
|
||
|
Image and compression
|
Video compression
|
H.265 Main Profile /
H.264 High profile / M-JPEG
|
|
|
Max resolution
|
1920x1080@30fps
|
||
|
Resolution
|
Main stream
|
1920x1080、1280x960、1280x720、720x576
|
|
|
Substream
|
640x480、352x288、320x240、176x144
|
||
|
MJPEG
|
1920x1080、1280x720、closed
|
||
|
Output bit rate
|
（CBR or
VBR), Bitstream setting range：32Kbps~10Mbps
|
||
|
Audio compression
|
G711，PCM
|
||
|
Character overlay
|
Support channel name,
date and time overlay, adjustable overlay position;
|
||
|
AI
|
Number of face bases
|
50,000 sheets
|
|
|
Recognition speed
|
≤300ms
|
||
|
Live detection
|
support
|
||
|
Mask detection
|
support
|
||
|
Body temperature alarm
|
support
|
||
|
interface
|
power
|
DC12V
|
|
|
network
|
1ch10/100BaseT
Ethernet RJ45 interface
|
||
|
Wiegand
|
1ch
Wiegand output interface
|
||
|
Switch
|
1ch relay output
|
||
|
SD card
|
Up to 128G
|
||
|
MIC
|
Built-in
|
||
|
Audio
|
Built-in 2ch audio
output
|
||
|
Physical
Characteristics
|
Working Humidity
|
10°C ~40°C
|
|
|
Working Humidity
|
0%-90% RH
|
||
|
Power Consumption
|
5W
|
||
|
size
|
215x125x20mm
|
||
|
weight
|
＜1kg
|
||
